Descripción

This application with collect all walls in the project that are Curtain Walls. It will provide a list of those walls, their Mark, Phase Created, Level, and if they have been previously elevated by the tool.

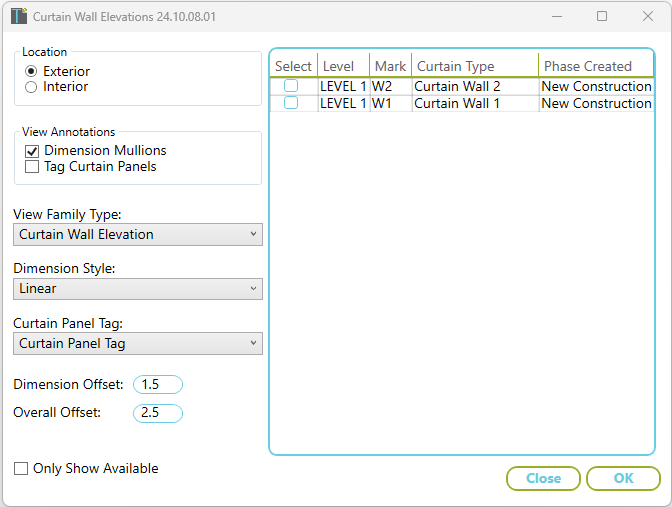

The user will then select a View Type, a Dimension Style, Panel Tag, and the offset criteria for the dimension strings. If there aren't any intermediate curtain wall grids, only an overall dimension string will be created. If intermediate Curtain Grids exist then two dimension strings will be created. One will be for each Curtain Grid, the other for the overall height of the Curtain Wall.



The tool will also tag every Curtain Panel with the tag selected.

Lea el documento de ayuda

Acerca de esta versión

Versión 19.07.08.01, 18/01/2021
This is the initial version of the application.
