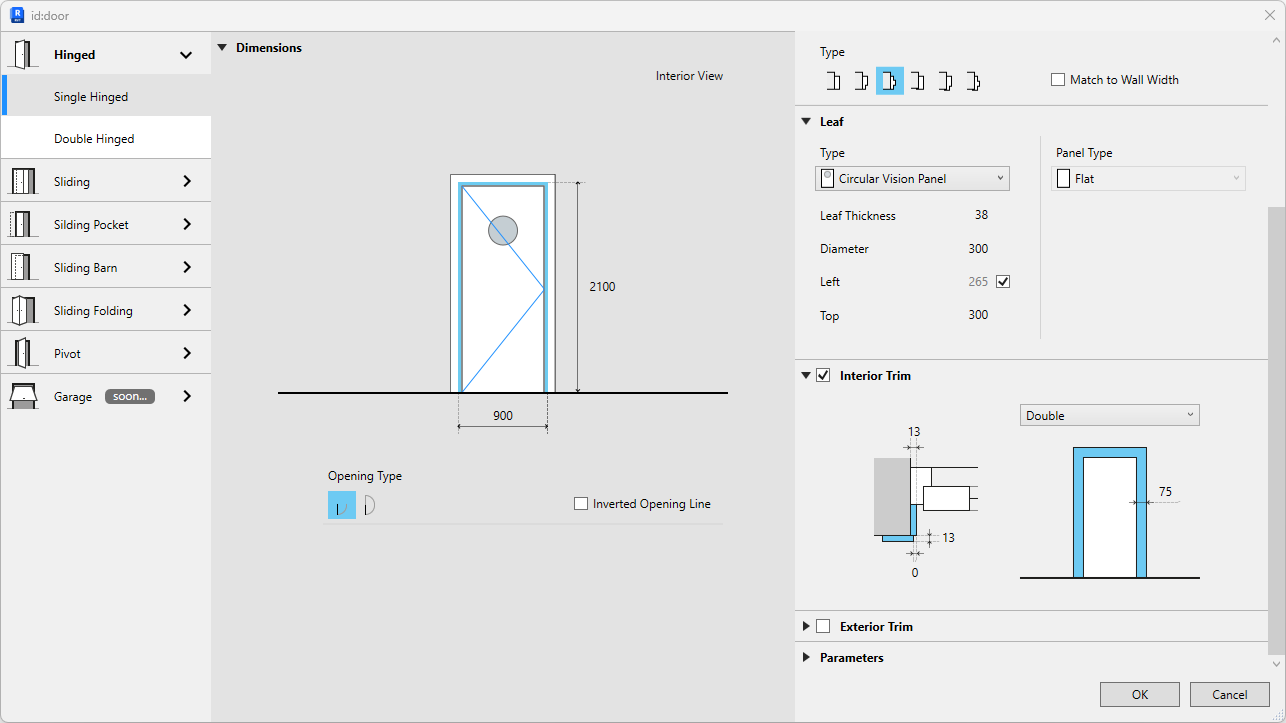

This add-in allows you, through a graphical interface, to create fully configurable parametric doors and windows from more than ten preset types, add them to your project and modify them easily and quickly.

More information



Main features:

  • Simple, fast and intuitive graphical interface

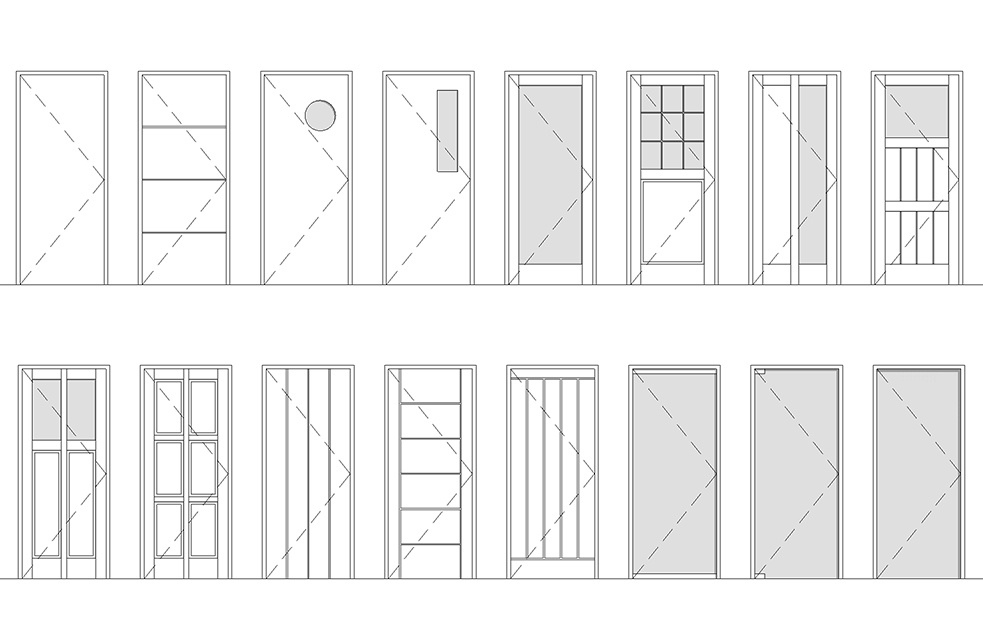

  • 10+ Door Types.
  • 10+ Window Types.
  • Imperial and metric units.
  • Set frame parameters.
  • Set sash and grid parameters.
  • Set sill and board parameters.
  • Set interior and exterior trim parameters.
  • Create custom windows by combining different types of sash into up to six individual panels.

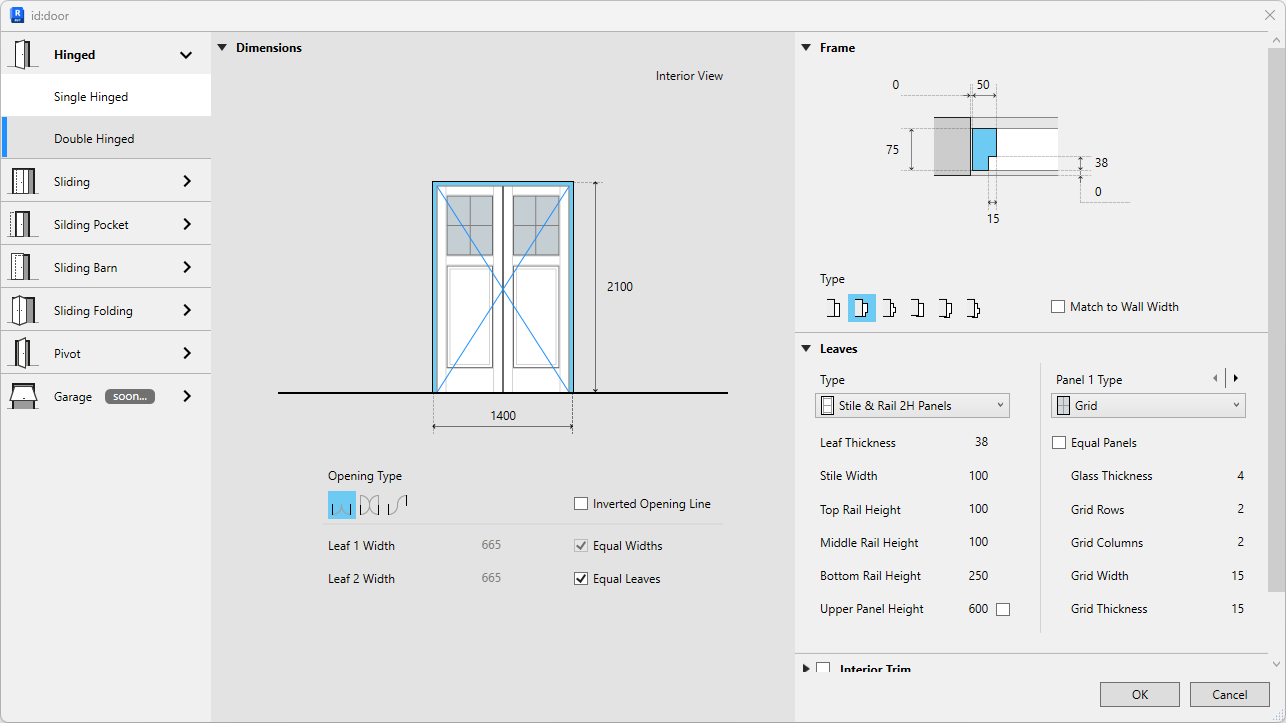

  • Create custom doors by combining different types of panels.
  • Define the type parameters from the graphical interface.
  • Assign materials to each of the parts.
  • The name of the doors or windows can be defined automatically or customarily.
  • Windows created with id:window can be modified and edited with the same graphical interface.
  • Doors created with id:door can be modified and edited with the same graphical interface.
  • All families of doors or windows have shared parameters that allow them to be included in schedules.
  • The opening line can be shown or hidden.
  • Change the family to another from the graphical interface.
  • Three levels of detail: coarse, medium, and fine.
  • Set the horizontal cut plane of the custom window that will be shown in the floor plan.

關於此版本

版本 3.2.0, 2024/5/20
Added Transom Added Sidelight Fixed Opening Cut in Joined Walls


客戶評論

4 評論
取得技術說明
  • Perfect
    Constantin Eugen Cozma | 三月 27, 2023

    I`m new to Revit and this is exactly what I was looking for!

    Are there any news about the Door plugin? When will it be available?

    Diego Agusti (發佈者) | 四月 12, 2023

    Hi Constantin, We are working on a version of the doors plugin. There will be news soon. Thank you


  • Top
    Diogo Carneiro | 四月 23, 2022

    Ótimo produto, uso a outra versão, mais esta sem dúvida é a melhor de todas, pena que o Dólar está muito alto em comparação com o Real.


  • Excellent
    Jessica Page | 十一月 05, 2021

    Is a door version in the pipeline?

    Diego Agusti (發佈者) | 十一月 08, 2021

    Hi PATH ARCHITECTURE, we are working on an update now with more types of windows and improvements in the plugin features. Then later we are going to make a door version. Thank you.


  • Very good
    Duy Nguyen | 十月 15, 2021 驗證下載 (這是什麼?)

    You should be upgrade more type windows

    Diego Agusti (發佈者) | 十一月 08, 2021

    Hi Duy, we are working on an update now with more windows types and improvements in the plugin features. Thank you.

    Duy Nguyen | 十二月 02, 2021

    Hi Diego, When the next version released, I'm very interested a version door :)

    Duy Nguyen | 七月 13, 2023

    Hello. I''m checking with door tools, default panel is ok but changed other panels errors. https://ibb.co/tJW6bBj Thanks.
