JTB DST Tool Trial
Digitally signed app
Teste
Sistema operacional:
Idioma:
Descrição
Merge, purge, and convert Sheet Set DST files. Works with Autodesk® AutoCAD® Sheet Set Manager (SSM) or Autodesk® AutoCAD® Architecture Project Navigator (PN) Sheet Set View as well as other verticals using the Sheet Set Manager.

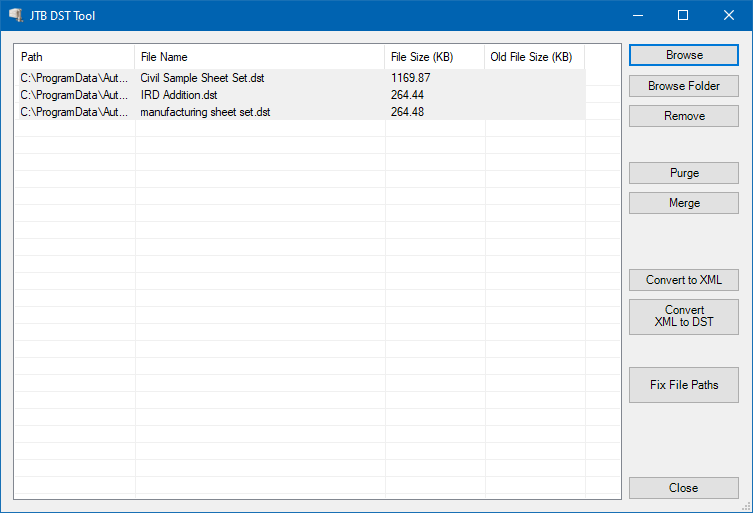

Run DSTTOOL command in AutoCAD or click on the button in the Ribbon menu. This app will help you:

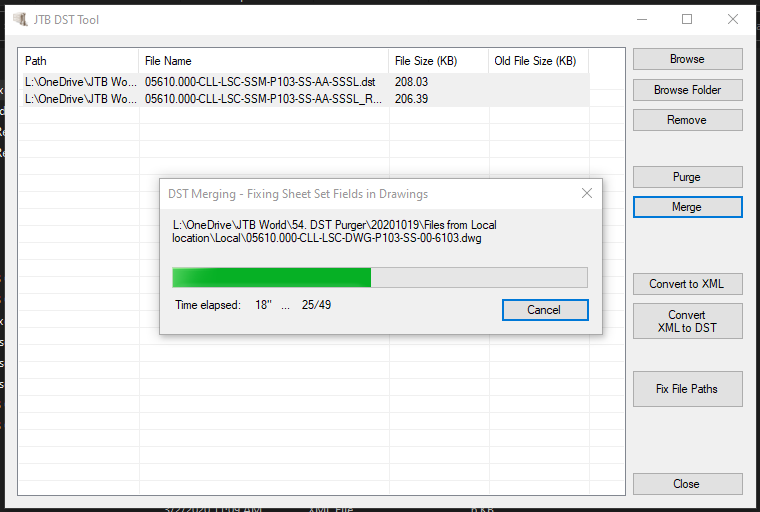

- Merge DST files. If similar subsets are found, they will be merged into 1 subset.
- Purge unused info in DST files to reduce file size. The purging is useful for IT or CAD Managers to correct performance problems with SSM Sheet Sets that start to perform badly. Sometimes the DST file can grow unreasonably large and the purging can help.
- Convert DST files to XML format and back. Useful if manual edits need to be done to the file. Use for Notepad or XML Notepad or other XML editors.

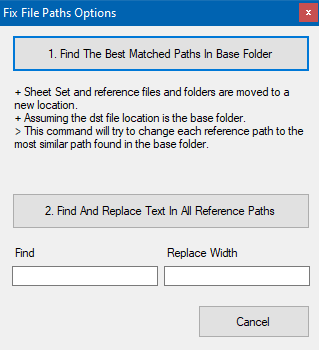

- Fix File Path: If you move your project files, restructure the folders, you may find that in your SheetSets, many file and folder paths are marked as missing or not found. Click this command button will help you fix the issue. Assuming the dst file is in the out-most folder, the app will try to find all missing files and folders paths inside the dst file's folder structure.
- Find and replace a text portion in all reference file and folder path.
The JTB DST Tool trial is limited to work with 3 sample files that are included.
Purchase JTB DST Tool here.
See our main app page here.
Note: This app uses a custom installer (and not the standard App Store installer).
Descrição da versão de avaliação
The JTB DST Tool trial is limited to work with 3 sample files that are included.
Sobre esta versão
Versão 3.0.0, 26/11/2024
Added support for AutoCAD 2025.
Fixed DST corruption causing AutoCAD to show "Sheet Set File Not Valid" when opening the DST.
License Activation required to upgrade to this version. Free upgrade if purchased within last two years.
