PCC- Pipeline Crossings Check
Pago
Sistema operacional:
Idioma:
Descrição

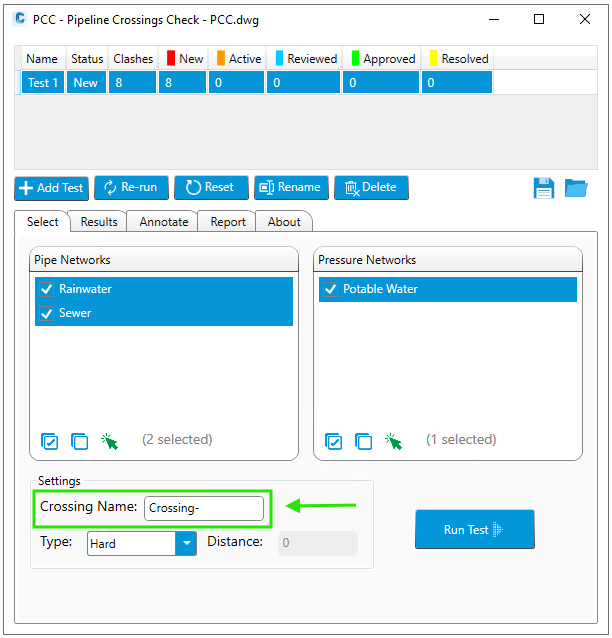

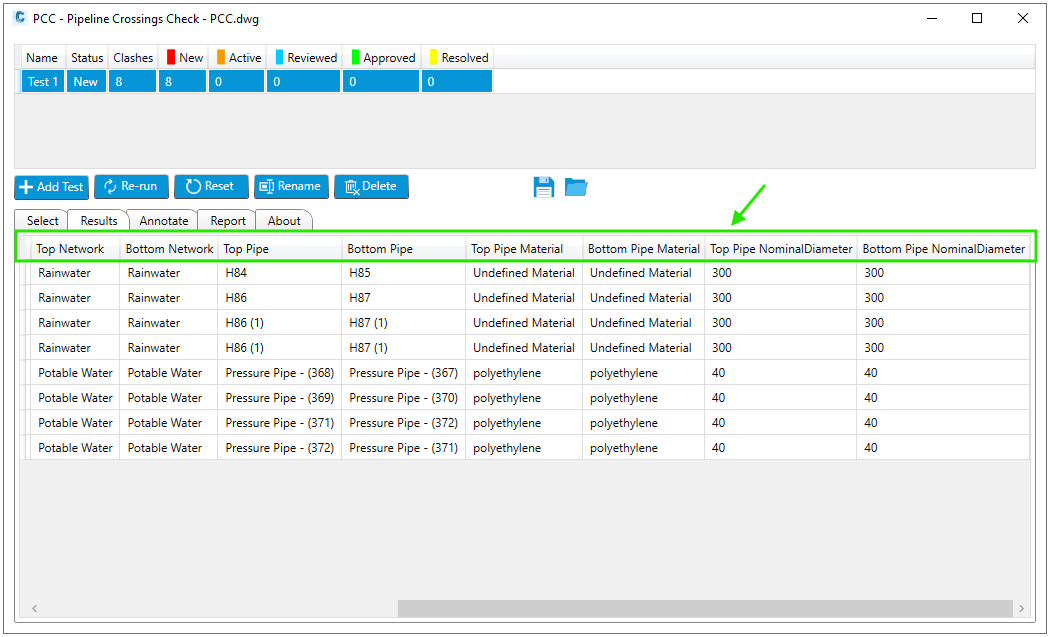

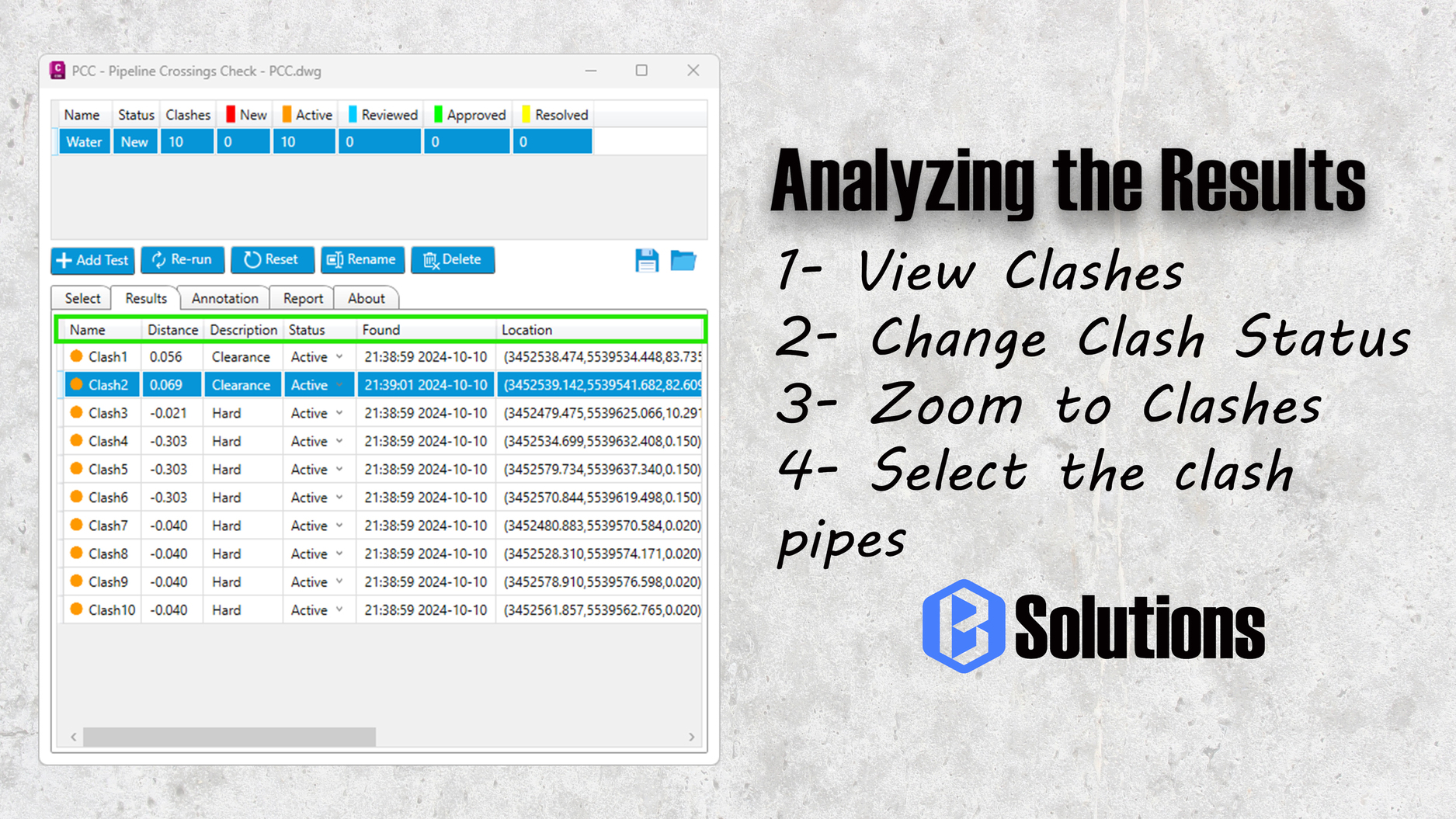

PCC - Pipeline Crossings Check is a powerful plugin for Autodesk® Civil 3D® designed to save time and effort in checking pipeline crossings. It can detect both soft and hard clashes during modeling. The plugin offers a user-friendly interface, simplifying the selection of Gravity Network or Pressure Network, and checks for clashes where they intersect. The results are displayed in a table, and clashes can be labeled in the model.
Features and Benefits:
- Detects soft and hard clashes while modeling in Civil 3D.
- Allows you to compare two pipe networks, including gravity network with gravity network, pressure network with pressure network, or gravity network with pressure network. Additionally, it facilitates checks within the same pipe network, whether gravity or pressure
- Labels clashes in the model, with customizable labeling settings.
- Zooms to the locations of clashes for quick identification.
- Allows selection of the involved parts of clashes.
Sobre esta versão
Versão 2.0.0, 22/11/2024
What's New in PCC V2

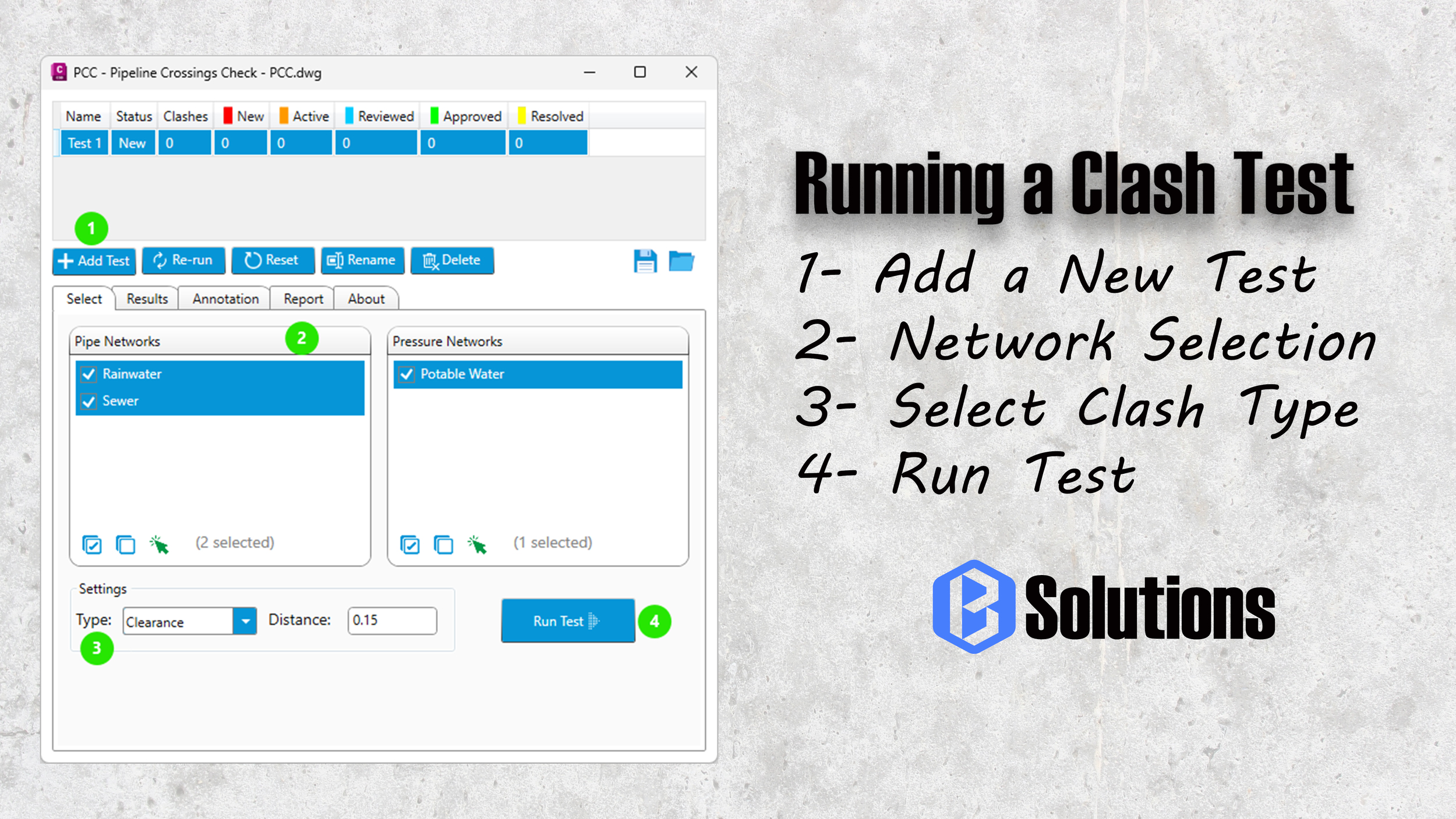

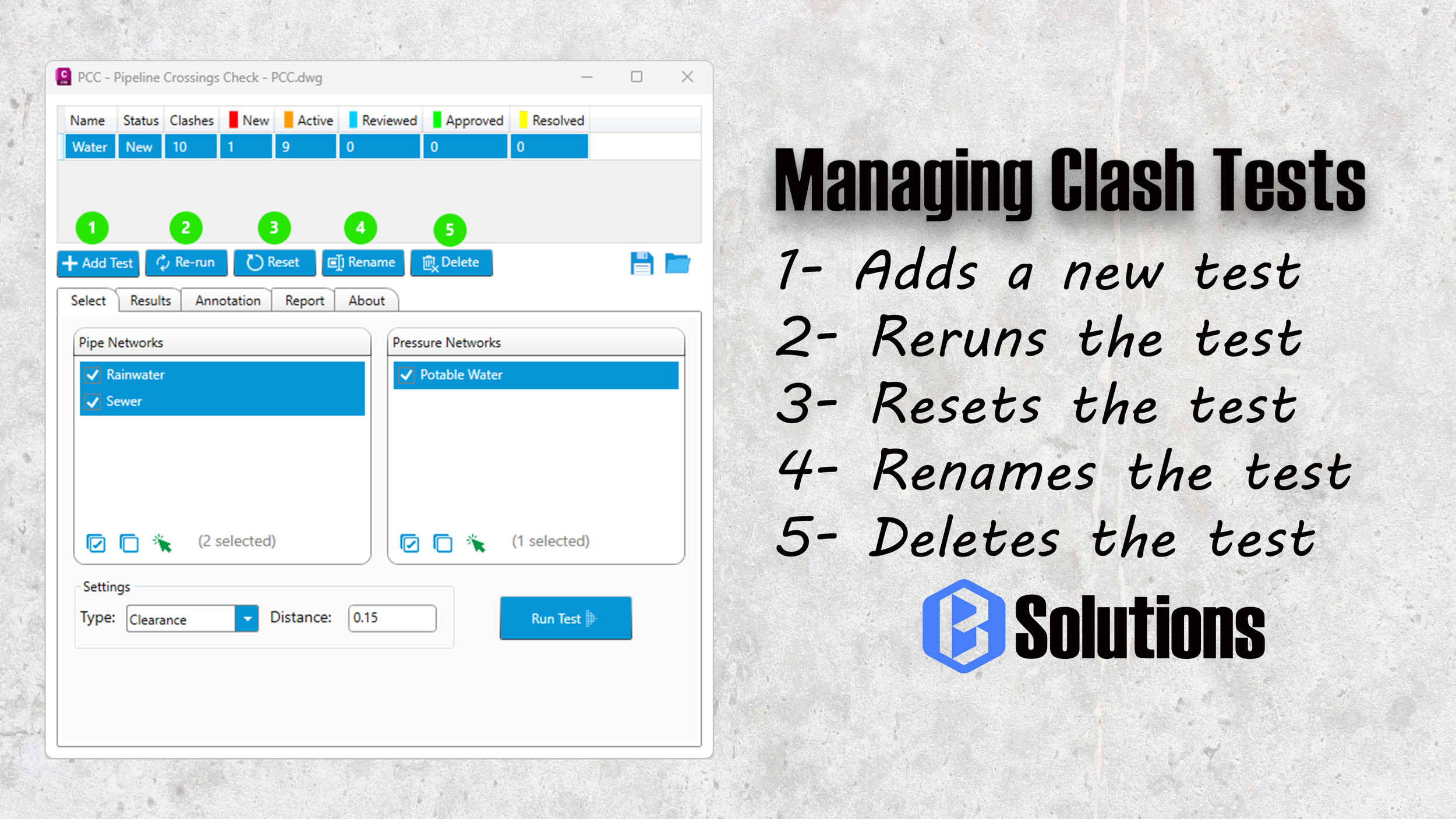

1- Test Management Enhancements
-New Test Buttons: Manage your clash tests with buttons for adding, rerunning, resetting, renaming, and deleting tests directly under the clash test table.
-Right-Click Context Menu: Easily manage tests using a right-click menu to perform the same actions (add, rerun, reset, rename, delete).
2-Improved Clash Status Management
Users can now update the status of clashes directly from the results table using a new dropdown list, with status options like New, Active, Reviewed, Approved, and Resolved.

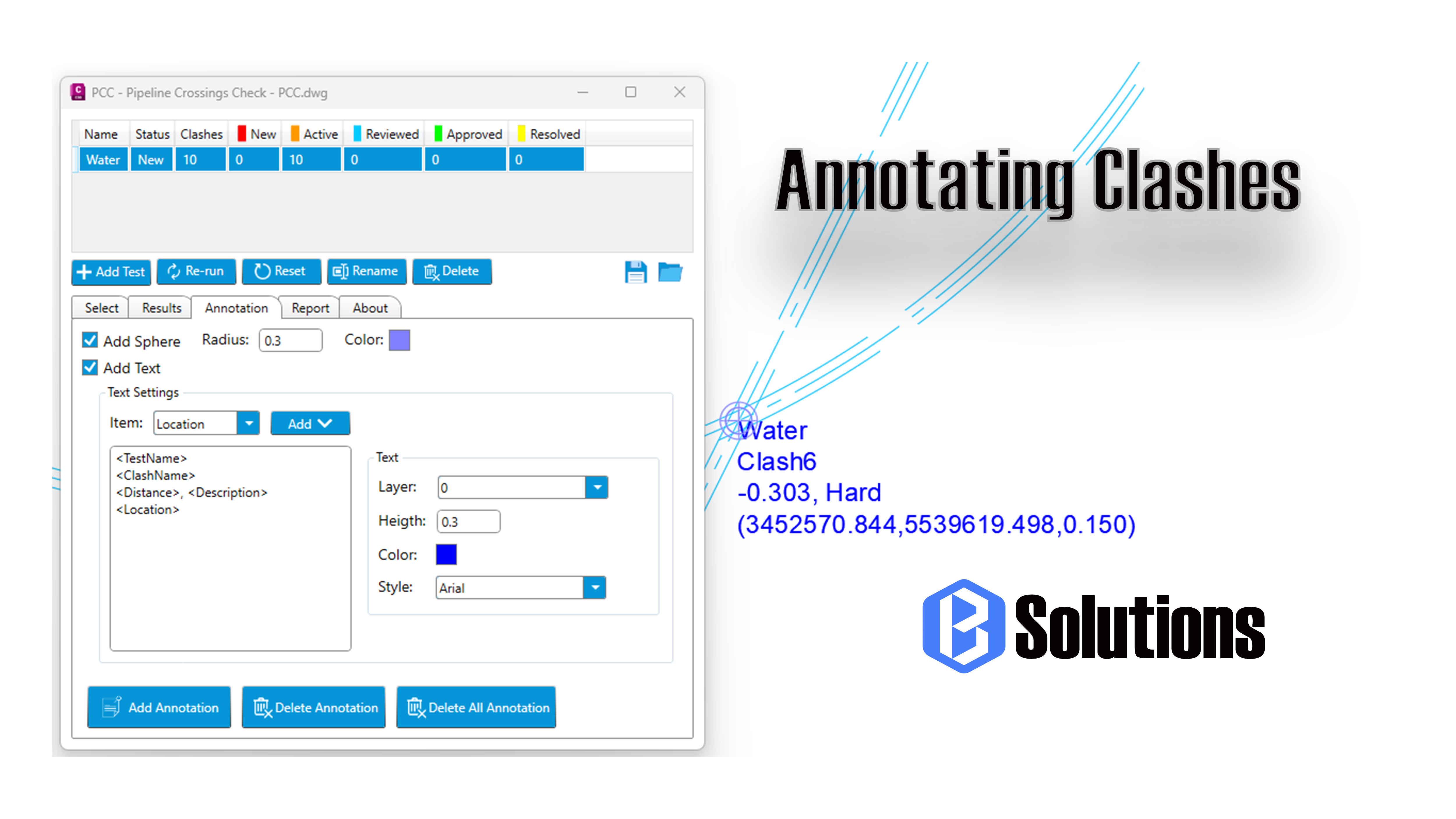

3- Expanded Annotation Capabilities
Customize labels by text, style, and other properties, including displaying clash-specific information such as Test Name, Clash Name, Distance, Status, and more.

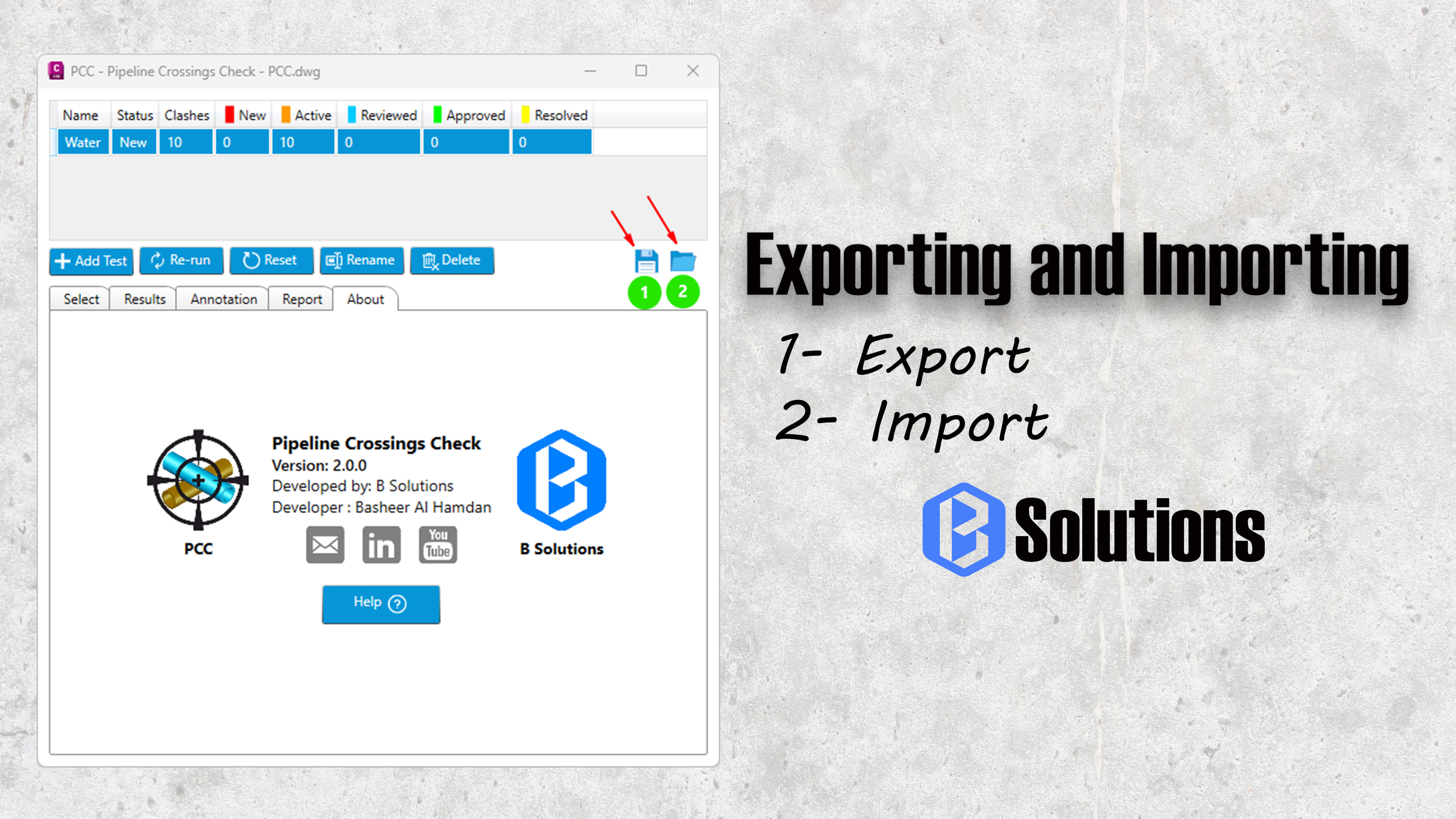

4- Save & Load Functionality
Export all clash tests, results, and settings to a file and re-import them at any time. This is perfect for saving progress, sharing results, or reviewing previous analyses.
5- Window Maximization
The plugin window can now be maximized for better viewing and easier navigation of clash results.
6- Streamlined User Interface
Refined UI elements offer a more intuitive user experience, with a better layout for clash result visualization
