Transform Flat Surfaces into Flowing Ocean Like Waves

Wave Surface Generator is a professional Autodesk® Fusion® add-in that creates realistic, parametric wave patterns on any planar face. Whether you're designing CNC-machined furniture, decorative panels, or artistic surfaces, this tool delivers instant professional results optimized for both manufacturing and visual impact.

Why Wave Surface Generator?

Creating organic wave patterns manually in CAD is time-consuming and inconsistent. Importing meshes from other software breaks your parametric workflow. Wave Surface Generator solves both problems by generating mathematically precise wave surfaces directly in Fusion - fully parametric, fully editable, and ready for manufacturing.

8 Professional Presets - Instant Results

Stop guessing at parameters. Each preset is professionally tuned for specific applications:

• Ocean Swell - Long, rolling waves ideal for larger surfaces. Highly machinable with smooth transitions.
• Beach Waves - Natural 15° diagonal approach simulating waves coming to shore. Perfect for decorative panels.
• Gentle Ripples - Subtle, tight waves for delicate surfaces and fine detail work.
• Choppy Surf - Turbulent water with multiple wave frequencies. Maximum visual interest.
• Deep Rollers - Powerful, slow-moving waves with a subtle 5° angle for organic realism.
• Abstract Texture - Bold 30° diagonal patterns with complex wave interactions. Artistic statement pieces.
• Fine Grain - Minimal texture variation for subtle finishing touches on small surfaces.
• Dramatic Waves - High-amplitude waves for maximum visual impact (includes machining warnings).

Smart Parameter Control

Every parameter is fully adjustable with real-time feedback:

• Wave Amplitude - Control wave height from subtle (0.2cm) to dramatic (1.0cm+)
• Wavelength - Set distance between peaks for tight ripples or long swells
• Wave Direction - Angle from 0-360° for natural diagonal flow
• Grid Resolution - Balance surface smoothness with generation speed (10-100)
• Wave Components - Layer multiple wave frequencies for realistic complexity (1-5)
• Edge Blend Distance - Smoothly fade waves at boundaries to prevent sharp transitions

The built-in statistics display protects you from costly mistakes:

• Amplitude Ratio Calculator - Warns when wave steepness exceeds 15% (undercut risk)
• Machining Recommendations - Suggests appropriate ball end mill sizes
• Grid Resolution Feedback - Alerts if the surface will appear faceted
• Tool Deflection Warnings - Identifies potentially challenging features

No more broken tools or failed toolpaths - know before you generate.

Save & Share Your Favorites

Found the perfect wave pattern for your product line? Save it as a JSON file and load it instantly on future projects. Share parameter files with team members or across your workshop for consistent results.

Built for CNC Machining

Unlike generic surface tools, Wave Surface Generator understands manufacturing constraints:

• Amplitude ratios kept under 15% prevent undercuts on 3-axis machines
• Smooth edge blending ensures clean boundaries for Replace Face operations
• High grid resolution (up to 100) creates smooth toolpaths
• Cross-wave components add realism without compromising machinability
• Works perfectly with Fusion adaptive clearing and contour strategies

Perfect For:

Woodworking & Furniture

• Table and desk surfaces
• Cabinet door panels
• Decorative wall art
• Guitar wall hangers with LED integration
• Serving trays and cutting boards

Product Design

• Consumer electronics housings
• Packaging with organic textures
• Decorative hardware and fixtures
• Architectural models
• Signage and dimensional letters

Artistic Applications

• Sculptural installations
• Relief panels for walls and ceilings
• Custom molds for casting
• Unique one-off designs

Simple Workflow:

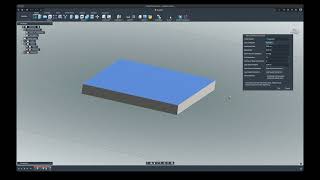

1. Select any planar face on your model
2. Choose a preset or customize parameters manually
3. Review real-time statistics and warnings
4. Generate the wave surface in seconds
5. Apply using Fusion Replace Face tool
6. Machine with confidence using your standard CAM workflow

Technical Details:

• Generates true 3D parametric surfaces using sinusoidal wave equations
• Multiple wave components sum for realistic ocean behavior
• Smooth Hermite interpolation for edge blending
• Lofted surface creation through sketch-based splines
• Works with faces in any orientation
• Creates surface bodies ready for Boolean operations
