SoftDraft PVC 2DS Piping System
Digitally signed app
Description
PVC 2D Piping System includes PVC 2D SCH 40 Pipe, Valves and Fittings. BOM available using the Autodesk® AutoCAD® DATAEXTRACTION command.
Creates a variety of PVC Schedule 40 Pipe and Fittings for easy placement in the PVC piping drawing.
New Features Include:
3-Point Down Up - Select a start point then a pipe Down/Up point and a 90 degree ending point.
2-Point 45 - Set the cursor to 45 degrees and select a start point and end point at 45 degree angle.
Multi-Point Pipe Run - Select multiple points at right angles and all the elbows are added automatically
90 Degree Reducing Elbows
90 Degree Street Elbows
Reducing Tees
The unique Pipe Spool feature allows you to draw a pipe spool with two selection points and specific start and end fittings. Start and end fittings include Plain End, Break, 90 Down, 90 Up, Cap, Tee Plan, Tee Turned Up and Tee Turned Down.
The selected fitting is attached to the cursor for placement and rotation.

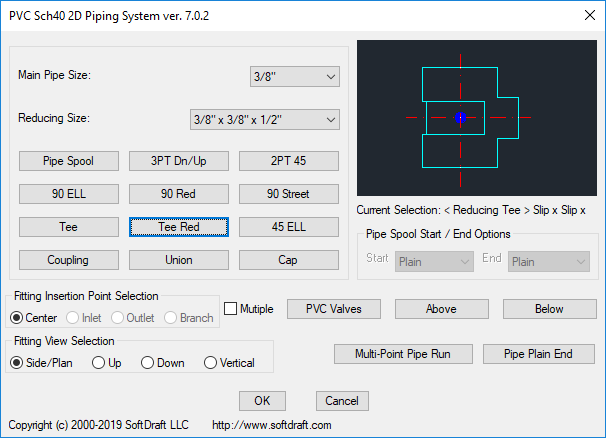

A dialog box interface provides an easy method for the selection of each fitting with different size selections and in one of three views - side, turned down or turned up.
Some fittings include a wipe-out mask so they can be placed on top of other fittings without having to break any lines on the fitting below to show correctly.

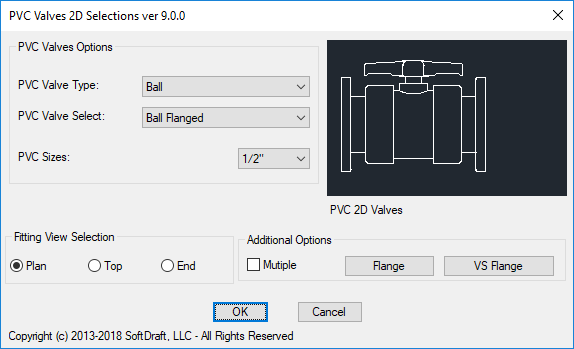

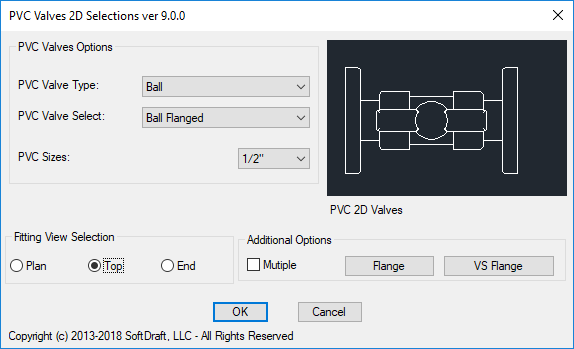

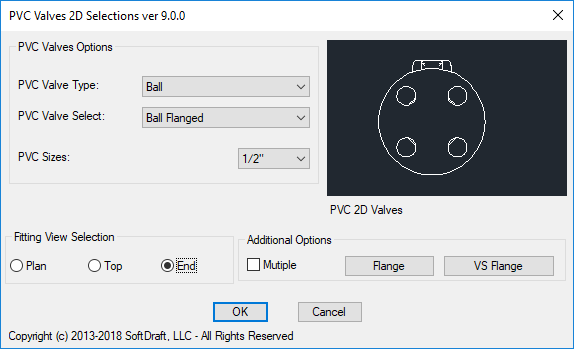

PVC 2D Valves allows the user to place valves in various 2D views by selecting one of the toggles on the dialog. Valves are inserted in different views - plan or side, top, and end view.
Includes 117 flanged and socket valves:
“Ball Flanged” “Ball Socket – Asahi” “Ball Socket – Spears” from 1/2" to 6"
“Butterfly Handle Oper. – Asahi” from 1-1/2" to 24"
“Check Socket-Ball Spears” from 1/2" to 6"
“Diaphragm Flanged-Asahi” from 1/2" to 10"
“Gate Flanged Asahi” “Gate Flanged Spears” “Gate Socket” from 1-1/2" to 14"
“Globe Flanged Asahi” “Globe Socket Asahi” from 1/2" to 4"
“Needle Straight” “Needle Angle” from 3/8" to 1/2"
Note: The installer is compatible with AutoCAD 2012 to 2025 (including other vertical products).
