Rolling Offset
Gratuit
Système d'exploitation:
Langue:
Description
Rolling offset is a plugin for connecting two selected conduits to each other in both the horizontal and vertical planes.
Two fittings and one conduit are created between the selected conduits.This plugin works only for conduits and fitting.
The steps for using Rolling Offset are:

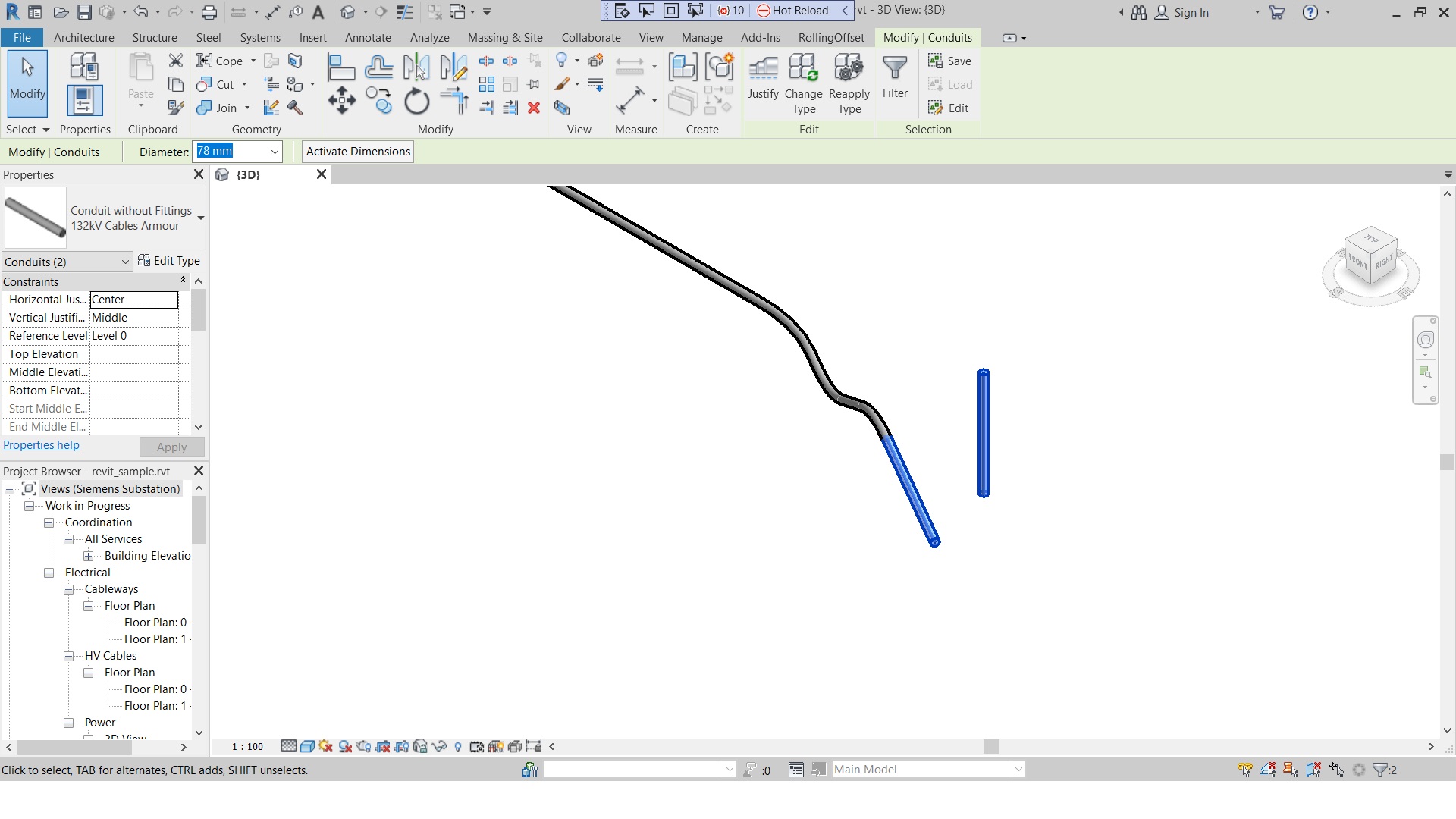

- For creating a rolling offset conduit, you must select 2 conduits.

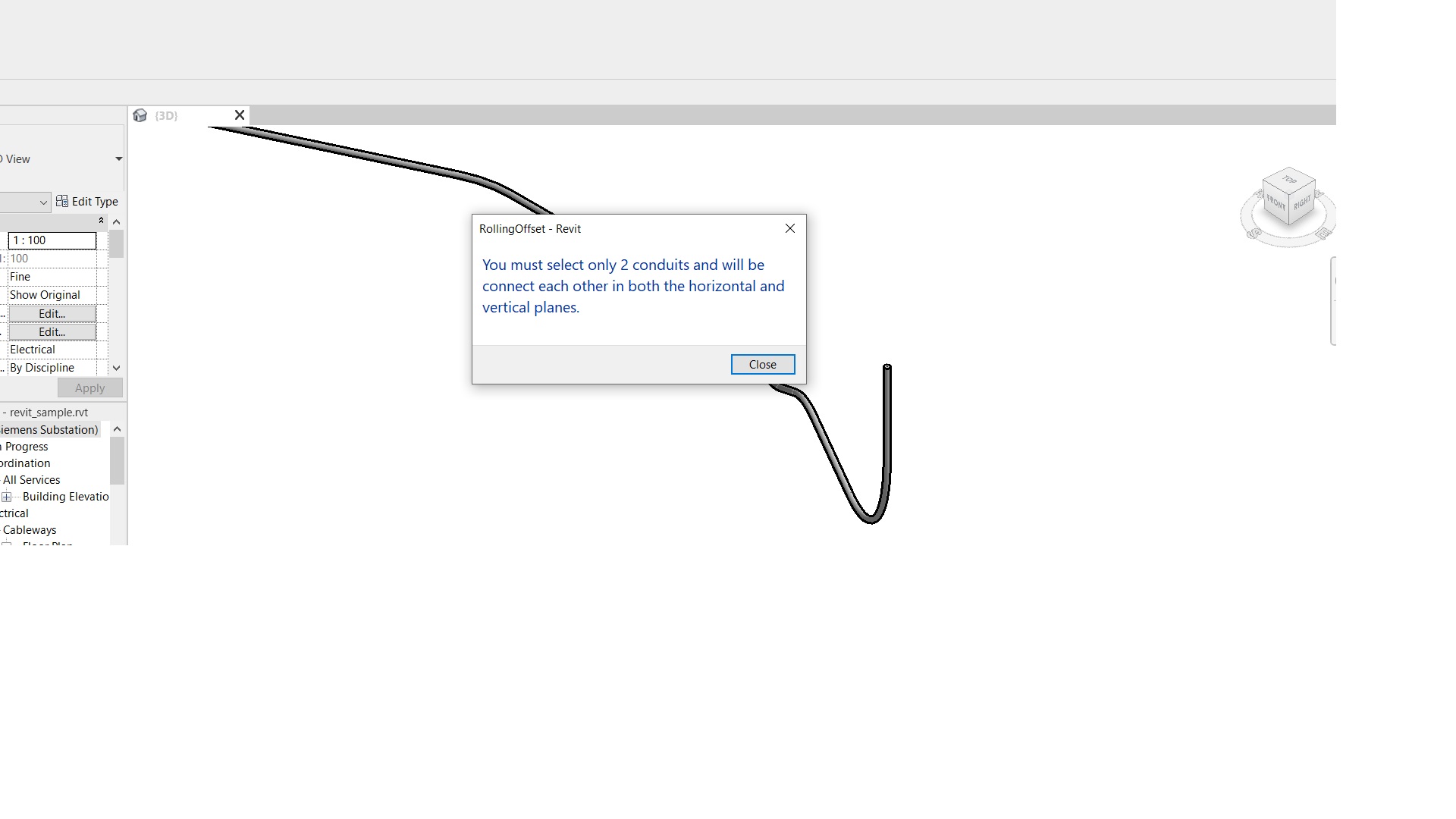

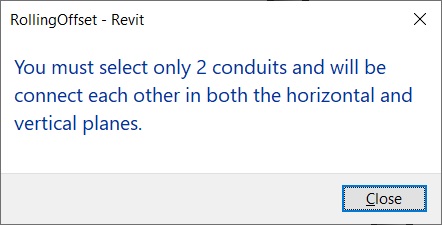

- If more than 2 conduits are selected, or none are selected then a message box appears .

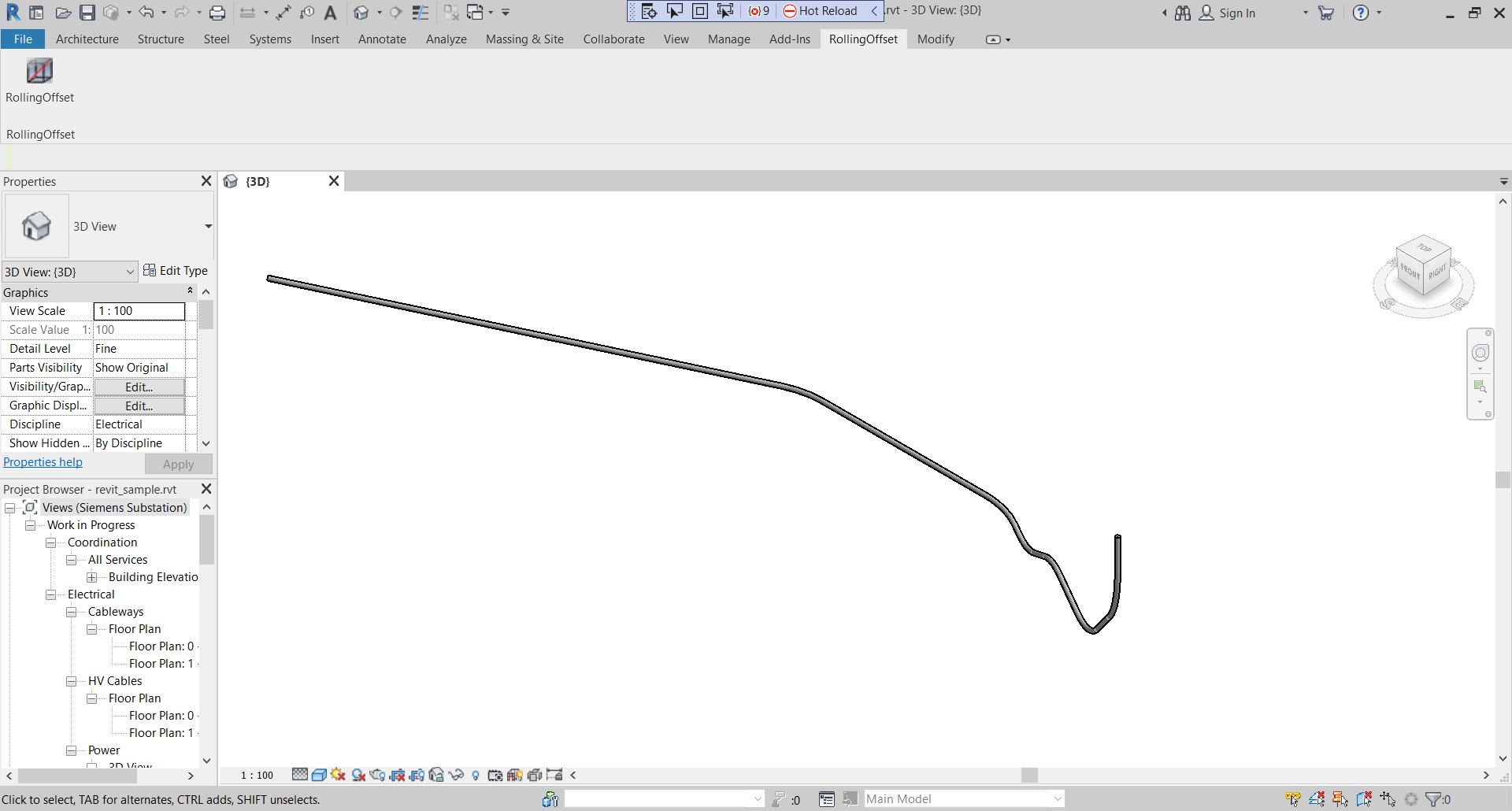

- When 2 conduits are selected they will be connected with each other with rolling offset conditional.
A propos de cette version
Version 1.0.2, 23/05/2023
This application will create 2 fittings and 1 conduit between 2 selected conduits, and it will be connected each other.
Can this addon also assist with modeling of Revit Piping or MEP Fabrication Pipework elements as well?
Can be very helpful for annoying rolling offsets but right now at V1 it needs work. At the moment it keeps creating new conduit at 1/8" size. Needs to inherit the size of the conduit being drawn.
Dear Mike, Please reinstall app.The BUG is solved. Best Regards.
Rolling offset need to provide a list of angle and custom angle
I second this!
